Printing of micro- and nanometer-scaled quartz glass structures from pure silicon dioxide opens up many new applications in optics, photonics, and semi­conductor techno­logies. So far, processes have been based on conventional sintering. Temperatures required for sintering silicon dioxide nano­particles are above 1100° C, which is much too hot for direct deposition onto semi­conducting chips. A team headed by Jens Bauer from KIT’s Institute of Nano­technology (INT) has now developed a new process to produce transparent quartz glass with a high resolution and excellent mechanical properties at far lower temperatures.

Bauer and his colleagues from the University of California, Irvine and the Edwards Lifesciences company in Irvine use a hybrid organic-inorganic polymer resin as the feedstock material. This liquid resin consists of polyhedral oligomeric sil­sesquioxane (POSS) molecules, which are small cage-like silicon dioxide molecules equipped with organic functional groups. After cross-linking the material via 3D printing to form a 3D nanostructure, it is heated to 650° C in air to remove the organic components. At the same time, the inorganic POSS cages coalesce and form a continuous quartz glass micro­structure or nanostructure. The temperature required for this purpose is only half the temperature needed for processes based on sintering of nano­particles.

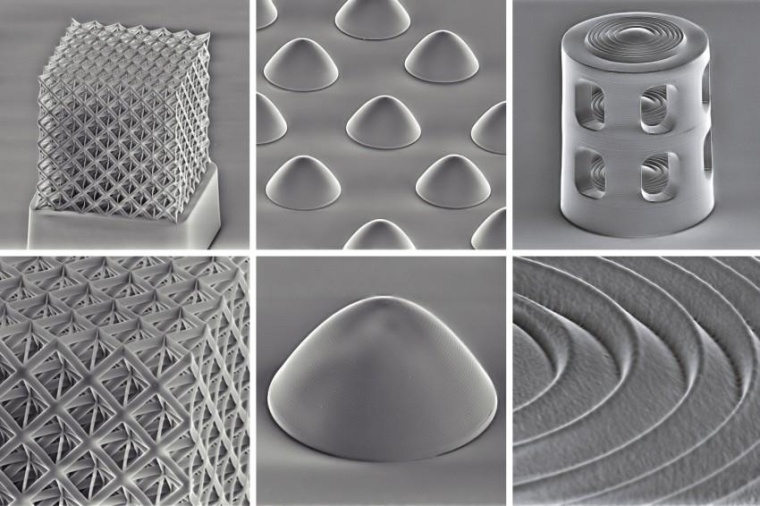

“The lower temperature enables the free-form printing of robust, optical-grade glass structures with the resolution needed for visible-light nano­photonics, directly on semiconductor chips ,” Bauer explains. Apart from an excellent optical quality, the quartz glass produced has excellent mechanical properties and can be processed easily. The researchers used the POSS resin to print various nanostructures, including photonic crystals of free-standing, 97 nanometers wide beams, parabolic micro­lenses, and a multi-lens micro objective with nanostructured elements. “Our process produces structures that remain stable even under harsh chemical or thermal conditions,” Bauer says.

“The INT group headed by Jens Bauer is associated with the 3DMM2O Cluster of Excellence,” says Oliver Kraft, Vice President Research of KIT. “The research results are only one example of how early-stage researchers are successfully supported in the cluster.” 3D Matter Made to Order, or 3DMM2O for short, is a joint Cluster of Excellence of by KIT and Heidelberg University. It pursues a highly inter­disciplinary approach by combining natural sciences and engineering. It is aimed at raising 3D additive manufacture to the next level – from the level of molecules up to macroscopic dimensions. (Source: KIT)

Reference: J. Bauer et al.: A sinterless, low-temperature route to 3D print nanoscale optical-grade glass, Science 380, 960 (2023); DOI: 10.1126/science.abq3037
