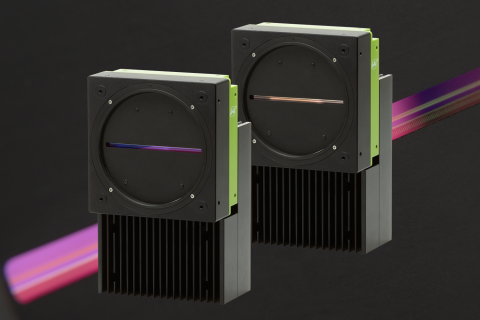

High-Speed 16K Color Trilinear and Monochrome Line Scan Cameras

These cameras feature 16K resolution with large 5 μm square pixels, and a CoaXPress 2.0 interface providing high data throughput of 50 Gbps. The trilinear color model has separate lines for red, green, and blue channels, ensuring precise color reproduction, and includes advanced algorithms for sub-pixel spatial compensation. The cameras are suitable for high-speed applications such as battery, flat panel display, and PCB inspection, with the color model achieving scan rates up to 100 kHz and the monochrome model up to 277 kHz.

Larger pixels enhance light sensitivity, and FPGA-based 2x1 horizontal pixel binning further improves performance in low-light environments. The CoaXPress v2.0 interface supports robust features like triggering and long cable lengths. Additional features include versatile GPIO and trigger options, region-of-interest, individual RGB gain and exposure control, and various image processing capabilities. The cameras come with an M95 lens mount and a heat sink for effective heat dissipation
