A new kind of 3D printing

Triplet fusion upconversion allows more intricate designs while saving time and material

22.04.2022 - Engineers at Stanford and Harvard have laid the groundwork for a new system for 3D printing that doesn’t require that an object be printed from the bottom up.

While 3D printing techniques have advanced signi­ficantly in the last decade, the techno­logy continues to face a fundamental limitation: objects must be built up layer by layer. But what if they didn’t have to be? Dan Congreve, an assistant pro­fessor of electrical engineering at Stanford and former Rowland Fellow at the Rowland Institute at Harvard Univer­sity, and his colleagues have developed a way to print 3D objects within a stationary volume of resin. The printed object is fully supported by the thick resin so it can be added to from any angle. This removes the need for the support struc­tures typically required for creating complex designs with more standard printing methods. The new 3D printing system could make it easier to print increasingly intricate designs while saving time and material.

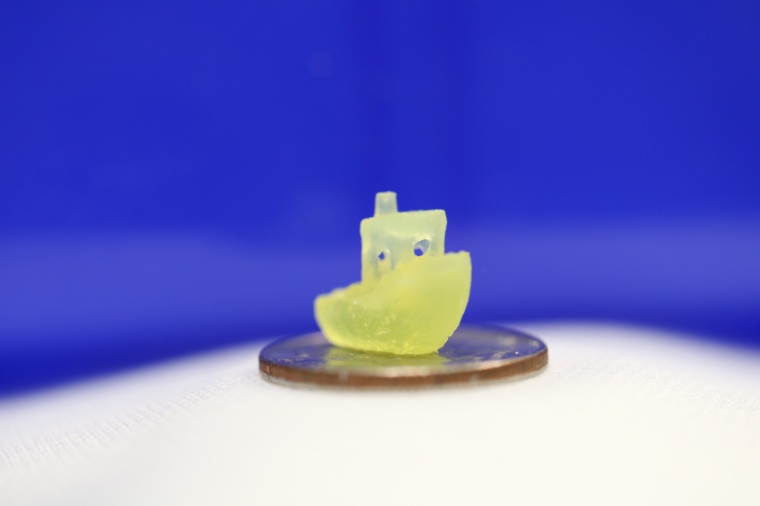

“The ability to do this volumetric printing enables you to print objects that were previously very difficult,” said Congreve. “It’s a very exciting oppor­tunity for three-dimensional printing going forward.” At its surface, the technique seems relatively straight­forward: The researchers focused a laser through a lens and shone it into a gelatinous resin that hardens when exposed to blue light. But Congreve and his colleagues couldn’t simply use a blue laser – the resin would cure along the entire length of the beam. Instead, they used a red light and some cleverly designed nano­materials scattered throughout resin to create blue light at only the precise focal point of the laser. By shifting the laser around the container of resin, they were able to create detailed, support-free prints.

Congreve’s lab specializes in converting one wavelength of light to another using triplet fusion upcon­version. With the right molecules in close proximity to each other, the researchers can create a chain of energy transfers that, for example, turn low-energy red photons into high-energy blue ones. “I got interested in this upcon­version technique back in grad school,” Congreve said. “It has all sorts of interesting applications in solar, bio, and now this 3D printing. Our real specialty is in the nanomaterials themselves – engi­neering them to emit the right wavelength of light, to emit it effi­ciently, and to be dispersed in resin.”

Through a series of steps – which included sending some of their materials for a spin in a Vitamix blender, Congreve and his colleagues were able to form the necessary upconversion molecules into distinct nanoscale droplets and coat them in a protective silica shell. Then they distributed the resulting nanocapsules, each of which is 1000 times smaller than the width of a human hair, throughout the resin. “Figuring out how to make the nano­capsules robust was not trivial – a 3D-printing resin is actually pretty harsh,” said Tracy Schloemer, a postdoctoral researcher in Congreve’s lab. “And if those nano­capsules start falling apart, your ability to do upconversion goes away. All your contents spill out and you can’t get those molecular colli­sions that you need.”

The researchers are currently working on ways to refine their 3D-printing technique. They are inves­tigating the possi­bility of printing multiple points at the same time, which would speed up the process considerably, as well as printing at higher reso­lutions and smaller scales. Congreve is also exploring other oppor­tunities to put the upcon­verting nano­capsules to use. They may be able to help improve the efficiency of solar panels, for example, by converting unusable low-energy light into wavelengths the solar cells can collect. Or they could be used to help researchers more precisely study biological models that can be triggered with light or even, in the future, deliver localized treatments.

“You could penetrate tissue with infrared light and then turn that infrared light into high-energy light with this upcon­version technique to, for example, drive a chemical reaction,” said Congreve. “Our ability to control materials at the nanoscale gives us a lot of really cool oppor­tunities to solve challenging problems that are otherwise difficult to approach.” (Source: Stanford U.)

Reference: S. N. Sanders et al.: Triplet fusion upconversion nanocapsules for volumetric 3D printing, Nature, online 20 April 2022; DOI: 10.1038/s41586-022-04485-8

Link: Rowland Institute at Harvard University, Cambridge, USA • Congreve Lab, Dept. of Electrical Engineering, Stanford University, Stanford, USA
