Successful “Industrialization and Digitalization of Additive Manufacturing”

At sites of BMW in Munich and GKN Powder Metallurgy in Bonn, the results of the IDAM project allows to manufacture more than 10,000 individual and spare parts.

Three years ago, the consortium of twelve SMEs, large companies and research institutions started with the common goal of revolutionizing metallic 3D printing in the field of automotive series production. Together, they set up a digitally networked, fully automated 3D printing production line at two locations at once and prepared it for automotive series production. From now on, at least 50,000 components per year can be manufactured cost-effectively using the laser powder bed fusion process, as well as more than 10,000 individual and spare parts. Due to the modular design of the blueprint of this line, the annual number of units can be further scaled as required.

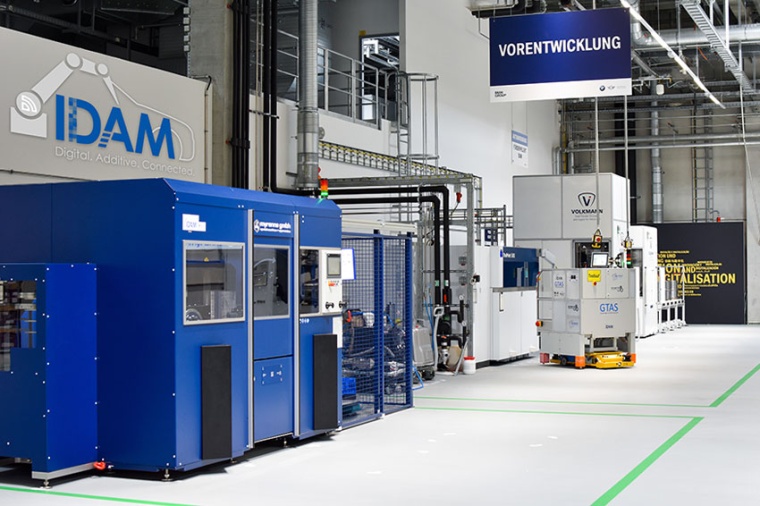

Digitally networked, fully automated IDAM 3D printing production line (Source:...

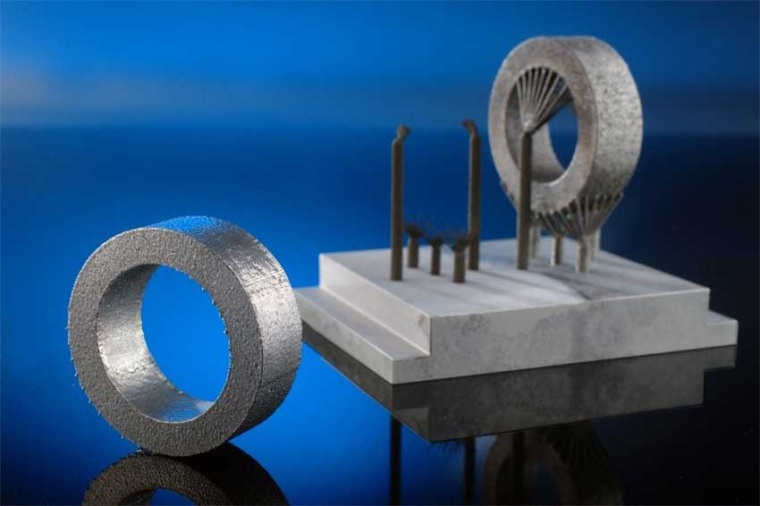

Wet-chemical decoupled component (Source: Fh. ILT)

Automated guided vehicles (AGVs) can now fully automatically transfer the mobile build chambers of the 3D printers between the modules of the “Industrialization and Digitalization of Additive Manufacturing” (IDAM) production lines. The machine ballet is orchestrated by a central control unit in which all data of the individual line modules converge on a digital level. The digital twin generated in this way monitors all relevant production data at all times – for maximum productivity and quality.

The partners have developed novel concepts for the automatic generation of 3D printing build data. Fully automated modules transport the processed metal powder and prepare it. In addition, automatic post-processing of the manufactured components takes place in specially designed stations. Comprehensive quality assurance measures have been implemented along these production lines: For example, sensors are used in the laser melting process to monitor and ensure that the finished parts fulfill quality requirements.

To implement the lines, the partners required interdisciplinary expertise. Thanks to it, they were able to both digitalize and automate – the mechanical and plant engineering – in component design as well as in the field of metallic 3D printing. The Fraunhofer Institute for Laser Technology ILT in Aachen are supporting the project through their many years of experience in the field of additive manufacturing technologies. The project partners quickly realized that ‘off-the-shelf’ solutions would not meet the ambitious project goals and fulfil the associated productivity and quality requirements of the automotive industry. Thus, a large part of the modules had to be completely redeveloped on a digital and physical level. In addition, successful operation of the IDAM lines is only possible through close networking of the individual modules.
