Coaxial and Area Lighting for Price-Sensitive Applications

The light colours red, green, blue, white and infrared are available. The high-power illuminators of the LQHP series achieve illuminance levels of over 5,000,000 lx with light field sizes of 40 x 40 mm, 60 x 60 mm and 80 x 80 mm. A smart housing design with IP64 protection, integrated controller technology as well as 3D cable outlet with limited installation space.

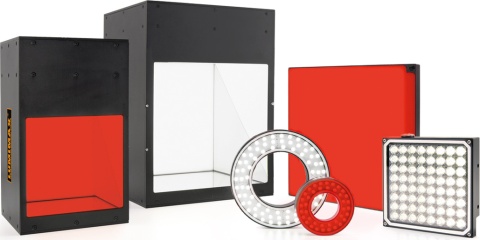

The modular concept allows easy adaptation of the light guidance for incident and transmitted light. With their compact design, the Basic ring and area illuminators have been specially developed for price-sensitive machine vision applications. Thanks to the highly efficient LED technology, the series achieve significantly higher intensities than comparable illuminators. The ring illuminators can be used individually or mounted into each other as a wide light field ring.
