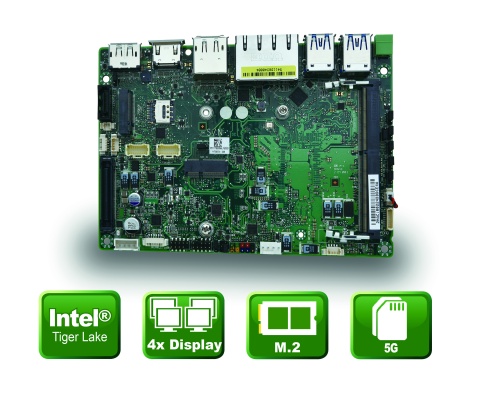

Embedded Board for Energy-Saving Applications

It is equipped with the Intel Core i3-1115G4E 2-core processor with a configurable Thermal Design Power (TDP) of 12 to 28 W as standard. The base processor clock varies between 1.7 and 3 GHz depending on the TDP setting and reaches a turbo clock of 3.9 GHz. Optionally, variants such as the Intel Celeron 6305E with two CPU cores, the Intel Core i5-1145G7E or the Intel Core i7-1185G7E with four CPU cores can be used. A DDR4 SO-DIMM socket enables all boards to use up to 32 GB non-ECC RAM with a maximum clock frequency of 3200 MHz. The integrated Intel 11th generation HD graphics unit offers quad display support. Two HDMI ports with a resolution of up to 4,096 x 2,160 pixels, one display port with a maximum of 5,120 x 3,200 pixels, and one LVDS port with a full HD resolution are available for connecting displays.
