Realize portal systems quickly and easily
10.11.2022 - With the new modular system from RK Rose+Krieger , linear, area and spatial portals can be constructed in a short amount of time.
The basis of the modular system are the axle series RK DuoLine and RK MonoLine . The construction of the systems is facilitated by appropriate CAD data, detailed assembly instructions and coordinated construction elements. In addition to terminal strips, system plates and brackets, the design components also include universal energy chain holders and motor adapters for connecting servo motors and planetary gears from all common manufacturers.

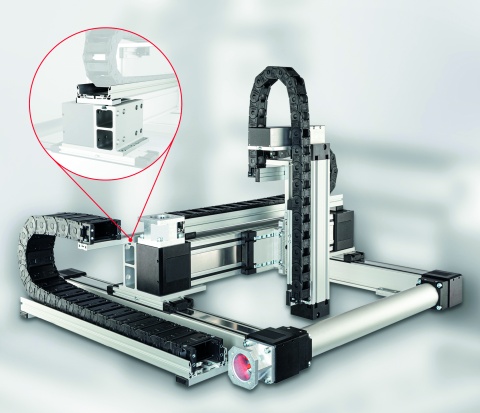

Multi-axis portal systems are used wherever products have to be moved or positioned. With the multi-axis construction kit from RK Rose+Krieger , the construction and assembly of these linear, area and spatial gantries is now even easier. All RK DuoLine and RK MonoLine axes can be combined with each other in all available sizes. Which connecting elements and how many are required for the respective axle combination can be found in the catalog for the modular system. CAD drawings of the components, detailed assembly instructions and positioning aids on all connectors make assembly even easier.
