Direct laser writing of electronic noses

Fabricating microscale gas sensors from liquid precursors

10.08.2022 - A new laser writing technique to develop the first highly customizable microscale gas sensing devices.

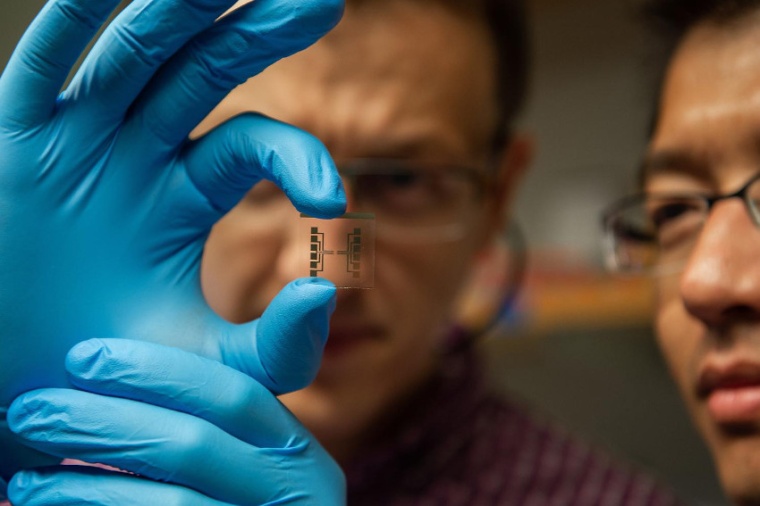

Environ­mental sensors are a step closer to simultaneously sniffing out multiple gases that could indicate disease or pollution, thanks to a Penn State colla­boration. Huanyu Larry Cheng, Lauren Zarzar and their teams combined laser writing and responsive sensor techno­logies to fabricate the first highly custo­mizable microscale gas sensing devices. “The detection of gases is of critical importance to various fields, including pollution monitoring, public safety assurance and personal health care,” Cheng said. “To fill these needs, sensing devices must be small, lightweight, inexpensive and easy to use and apply to various environ­ments and substrates, such as clothing or piping.”

According to Cheng, the challenge is creating devices with the desired properties that still can be tailored with the infrastructure needed for precise and accurate sensing of different target gases at the same time. That’s where Zarzar’s expertise with laser writing comes in. “Laser writing techniques give design freedom to a wide range of fields,” Zarzar said. “Expanding our under­standing of how to directly synthesize, pattern and integrate new materials – especially nano­materials and nano­material composites – into complex systems will allow us to create increa­singly more sophis­ticated and useful sensing techno­logies.”

Her research group developed the laser-induced thermal voxel process, which enables the simultaneous creation and integration of metal oxides directly into sensor platforms. Metal oxides react to various compounds, triggering the sensing mechanism. With laser writing, the researchers dissolve metal salts in water, then focus the laser into the solution. The high tempera­ture decomposes the solution, leaving behind metal oxide nano­particles that can be sintered onto the sensor platform.

The process streamlines previous methods, which required a pre-defined mask of the planned pattern. Any changes or adjustments required the creation of a new mask – costing time and money. Laser writing is maskless, according to Zarzar, and, when combined with the thermal voxel process, it allows for the rapid iteration and testing of multiple designs or materials to find the most effective combi­nations.

“Precise patterning is also a necessary component for the creation of elec­tronic noses, or arrays of sensors that act like a nose and can precisely detect multiple gases at the same time,” said Alexander Castonguay. “Such precise detection requires the patterning of different materials in close proximity, at the thinnest microscale. Few patterning techniques have the reso­lution to do this, but the approach detailed in this study does. We plan to use the techniques and materials described here to develop electronic nose prototypes.”

The researchers tested five different metals and metal combi­nations currently used in sensors. According to Castonguay, the point where different metal oxides touch, a hetero­junction, cultivates a unique environ­ment at the interface of the two materials that enhances the response of gas sensors. The team found that a hetero­junction of copper oxide and zinc oxide has a five to 20-fold enhanced response to the tested gases – ethanol, acetone, nitrogen dioxide, ammonia and hydrogen sulfide – over just copper oxide.

“This finding supports other reports in the scien­tific literature that the creation of mixed oxide systems can lead to signi­ficant increases in sensor response and demonstrates the efficacy of the laser-induced thermal voxel technique for mixed-oxide gas sensor fabri­cation,” Castonguay said. “We hope by pooling the laser writing knowledge of the Zarzar group with the wearable sensor expertise of the Cheng group, we will be able to expand our capa­bilities to create novel, customizable sensors.” (Source: PSU)

Reference: A. C. Castonguay et al.: Direct Laser Writing of Microscale Metal Oxide Gas Sensors from Liquid Precursors, ACS Appl. Mater. Interfaces 14, 28163 (2022); DOI: 10.1021/acsami.2c03561

Link: Dept. of Materials Science and Engineering, Pennsylvania State University, University Park, USA
