A new electrode that could free up 20 percent more light from organic light-emitting diodes has been developed at the University of Michigan. It could help extend the battery life of smart­phones and laptops, or make next-gen tele­visions and displays much more energy efficient. The approach prevents light from being trapped in the light-emitting part of an OLED, enabling OLEDs to maintain brightness while using less power. In addition, the electrode is easy to fit into existing processes for making OLED displays and light fixtures.

“With our approach, you can do it all in the same vacuum chamber,” said L. Jay Guo, U-M professor of electrical and computer engi­neering. Unless engineers take action, about 80 percent of the light produced by an OLED gets trapped inside the device. It does this due to an effect known as waveguiding. Essen­tially, the light rays that don't come out of the device at an angle close to perpen­dicular get reflected back and guided sideways through the device. They end up lost inside the OLED.

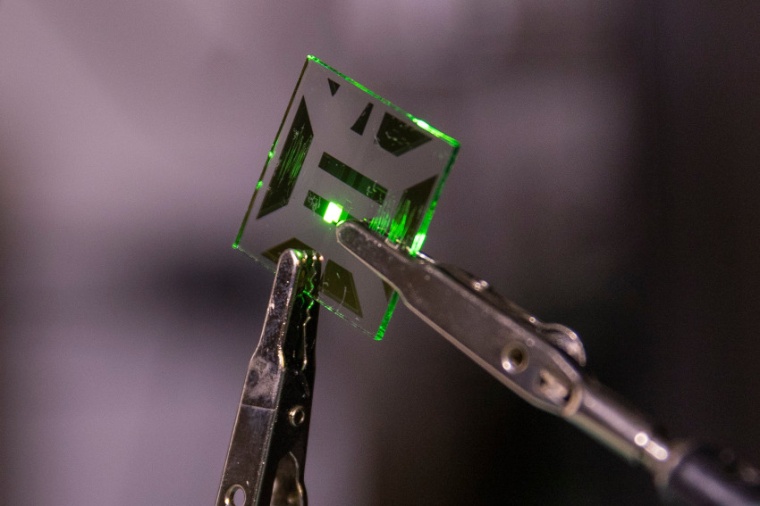

A good portion of the lost light is simply trapped between the two electrodes on either side of the light-emitter. One of the biggest offenders is the transparent electrode that stands between the light-emitting material and the glass, typically made of indium tin oxide (ITO). In a lab device, you can see trapped light shooting out the sides rather than traveling through to the viewer. “Untreated, it is the strongest wave­guiding layer in the OLED,” Guo said. “We want to address the root cause of the problem.”

By swapping out the ITO for a layer of silver just five nano­meters thick, deposited on a seed layer of copper, Guo's team maintained the electrode function while eliminating the wave­guiding problem in the OLED layers altogether. “Industry may be able to liberate more than 40 percent of the light, in part by trading the conventional indium tin oxide electrodes for our nanoscale layer of transparent silver,” said Changyeong Jeong.

This benefit is tricky to see, though, in a rela­tively simple lab device. Even though light is no longer guided in the OLED stack, that freed-up light can still be reflected from the glass. In industry, engineers have ways of reducing that reflec­tion – creating bumps on the glass surface, or adding grid patterns or particles that will scatter the light throughout the glass. “Some researchers were able to free up about 34 percent of the light by using uncon­ventional materials with special emission directions or patterning structures,” Jeong said.

In order to prove that they had eli­minated the wave­guiding in the light-emitter, Guo's team had to stop the light trapping by the glass, too. They did this with an experi­mental set-up using a liquid that had the same index of refraction as glass, an index-matching fluid. That index-matching prevents the reflection that happens at the boundary between high-index glass and low-index air.

Once they'd done this, they could look at their experimental set-up from the side and see whether any light was coming sideways. They found that the edge of the light-emitting layer was almost completely dark. In turn, the light coming through the glass was about 20 percent brighter. This research was funded by Zenith­nano Techno­logy, a company that Guo co-founded to commercia­lize his lab's inventions of transparent, flexible metal electrodes for displays and touch­screens. (Source: U. Michigan)

Reference: C. Jeong et al.: Tackling light trapping in organic light-emitting diodes by complete elimination of waveguide modes, Sci. Adv. 7, eabg0355 (2021); DOI: 10.1126/sciadv.abg0355

Link: Guo Group, Dept. of Electrical Engineering and Computer Science, University of Michigan, Ann Arbor, USA
