Machine Vision

Cost Savings Through Automated Handling of Porcelain Tableware

3D-Based Robotic Pick-and-Place System

11.04.2022 - A cobot in combination with a 3D profile sensor and machine vision software has succeeded in saving 15 percent of production costs by automating the handling of luxury Italian porcelain teacups. This success is prompting the companies involved to consider further applications, for example in the food industry.

Aluxury porcelain manufacturer based outside Florence, Italy has been a leader in handcrafted, elegantly designed tableware going back to the 18th century. Porcelain, otherwise referred to as fine china, it is renowned for its strength, durability, and pristine white color.

Yet, it is precisely that immaculate white color which poses numerous manufacturing challenges. For a robot arm to accurately locate raw white teacups on the production line and accurately place them in rows, a 2D vision system was not up to the task of distinguishing the different sizes, shapes, and positioning of the product. To overcome these challenges, this luxury manufacturer sought the expertise of Autech and Fortek, two Italian companies renowned for providing automation solutions, to help develop a vision-guided robot pick-and-place system that could locate teacups randomly placed by human operators. “Seeing the manufacturing process, we thought that the only way to solve this problem was through the use of a 3D-based vision system, and we found Matrox Imaging’s vision systems and software perfect for this purpose,” said software ­developer Marco Goracci, of Autech.

Vision Is Our Cup of Tea

The 3D vision system that Autech and Fortek designed comprises a Matrox Altiz 3D profile sensor connected to a Matrox 4Sight EV6 vision controller running Matrox Design Assistant X vision software. A collaborative robot (a “cobot”) from Universal Robots completes the installation. The cobot is entirely vision guided; the software directs its movements and requires no operator interaction with either the cobot arm or the vision system.

The vision system performs three key tasks: scanning in 3D the raw white vessels; analyzing the 3D scans to establish the vessels’ size, shape, and position; and communicating the results to the cobot so it can accurately reach the teacups as they move along the production line. A human operator placed the raw white teacups on the production line earlier in the process. “We needed a robust solution for a pick-and-place application. Matrox Imaging products were the best in term of ease of use, programmability, and price-to-quality ratio,” noted Goracci.

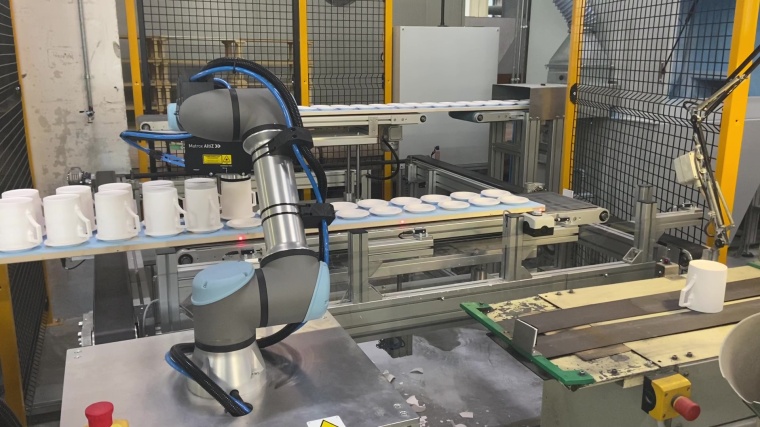

The profile sensor is connected to, and actually powered by, the vision controller through a Gigabit Ethernet cable. The sensor, mounted at the end of the cobot arm, moves above the vessels, performing a 3D scan of each teacup. The unique algorithms running inside the profile sensor automatically generates reliable 3D data, by smartly selecting or combining the pixel data from the two integrated image sensors and outputting the 3D data through the GigE Vision interface.

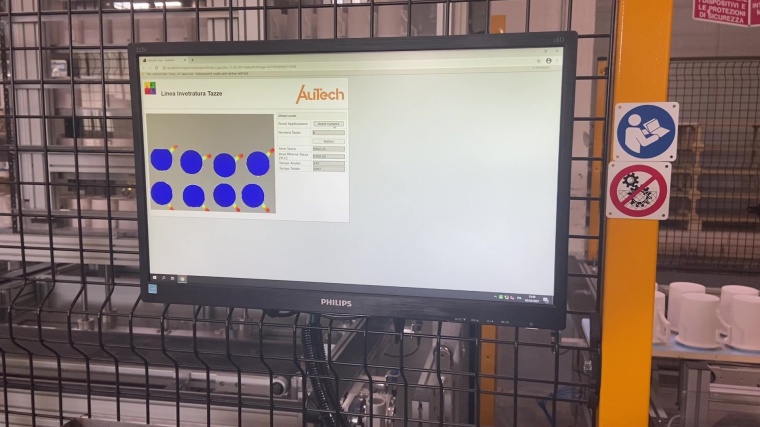

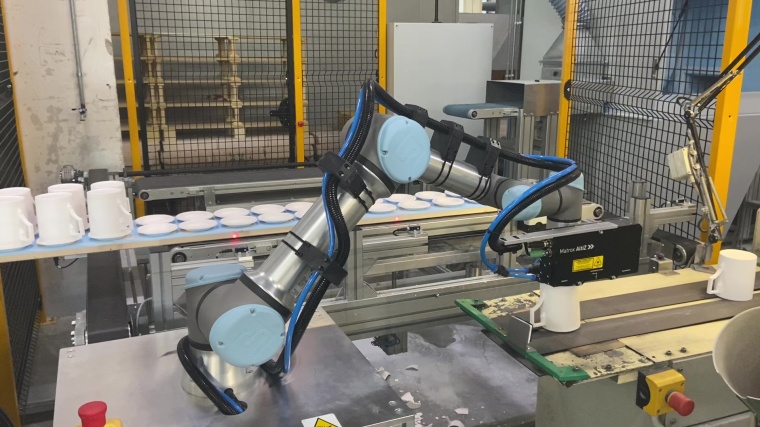

The 3D data, in the form of a depth map, is used by Matrox Design Assistant X software to locate individual teacups by situating their unique coordinates on the plane and finding the handle position and degree of rotation of each cup. The vision algorithm begins by filtering the depth-map to remove unwanted areas and pixels. Blob Analysis is then applied to the filtered depth map; each teacup corresponds to a blob, which is used to calculate the highest height value using the Intensity Checker within the software. A combination of Metrology and Blob Analysis steps are used to precisely locate the position and rotation of the handle of each teacup. These coordinates are passed to the cobot using socket communication, allowing the robot arm to start its pick-and-place operations. The cobot then picks individual teacups and presents them to the appropriate glazing and decorating line.

Lining It Up

The manufacturer produces teacups in a wide variety of shapes, sizes, and heights. Thanks to the flexible flowchart development within the vision software, the team at Autech was able to create a single project that addressed all possible product variations. This eliminated the need to implement and switch between different recipes and streamlined the deployment procedure. The vision system was brought online within one month with the involvement of a software engineer and a vision consultant. The major challenge concerned the variety of porcelain products to be analyzed by the application; with the help and support of Matrox Imaging’s technical support team, engineers from both Autech and Fortek successfully fine-tuned the software analysis performed by the vision system. Implementation of the vision technology means a single-sourced vision system now allows the porcelain manufacturer to manage their entire production line.

“Our experience designing and deploying this project demonstrated how effective Matrox Imaging’s products are for use in a vision-guided robot pick-and-place installation. We knew that a normal 2D vision system wouldn’t suffice, and the 3D vision capabilities they afforded were ideal for our needs,” said Goracci. “Our customers were very pleased with the outcome, so much so we are exploring plans to extend this application to other products they manufacture.”

Conclusion

With a satisfied customer, the team at Autech is equally pleased with their experience developing this 3D vision system. It allowed them to consider new vision opportunities in fields not previously considered, including other potential applications in the food industry, and they anticipate developing similar vision systems for other customers in the future.
“Previously, the team at this luxury porcelain manufacturer required two operators to manage that production line,” concluded Goracci. “With the introduction of the Matrox Imaging-based vision system, a single operator is now able to oversee the entire production process, which helped contribute to a 15 percent reduction in overall production costs – a clear success.”

Author
Katia Ostrowski, Communications Specialist at Matrox Imaging
