Deflecting lightning with a laser

23.01.2023 - A European consortium has guided lightning using a high-power laser installed at the top of Mount Säntis in Switzerland.

Forest fires, power cuts and damaged infrastructure – lightning fascinates and destroys in equal measure, causing as many as 24,000 deaths a year worldwide not to mention widespread destruc­tion. Even today, the lightning rod invented by Benjamin Franklin is the best form of protection. And yet, these rods do not always provide optimal protection for sensitive sites. A European consortium consisting of the University of Geneva (UNIGE), École Poly­technique (Paris), EPFL, HES-SO, and Trumpf Scientific Lasers in Munich has developed a promising alter­native: the laser lightning rod or LLR. After testing the LLR on the summit of Säntis in Switzerland, the researchers now have proof of its feasibility. The rod can deflect lightning over several dozen meters even in poor weather.

Lightning is one of the most extreme of natural phenomena. An abrupt electro­static discharge of millions of volts and hundreds of thousands of amperes, lightning can be observed in a single cloud, between several clouds, between a cloud and the ground and vice-versa. From power cuts and forest fires to damaged infrastructure, it also causes extensive devastation totalling several billion dollars. Lightning-protec­tion devices have changed little since 1752 when Benjamin Franklin invented the lightning rod – a pointed, conductive mast made of metal connected to the ground. The traditional rod is to this day still the most effective form of external protection: it protects a surface with a radius that is more or less equal to its height. So, a 10 meter-high rod will secure an area with a 10 meter radius. However, since the height of the masts is not limitlessly extendable, it is not an optimal system for protecting sensitive sites over a wide area, such as an airport, wind farm or nuclear power plant.

The European consortium has been working on the laser lightning rod (LLR). By generating channels of ionised air, the LLR was used to guide lightning along its beam. Extending upwards from a traditional lightning rod, it could increase its height virtually as well as the surface of the area it is protecting. “When very high power laser pulses are emitted into the atmo­sphere, filaments of very intense light form inside the beam”, begins Jean-Pierre Wolf from the department of applied physics. “These filaments ionise the nitrogen and oxygen molecules in the air, which then release electrons that are free to move”, he continues. “This ionised air, a plasma, becomes an electrical conductor”.

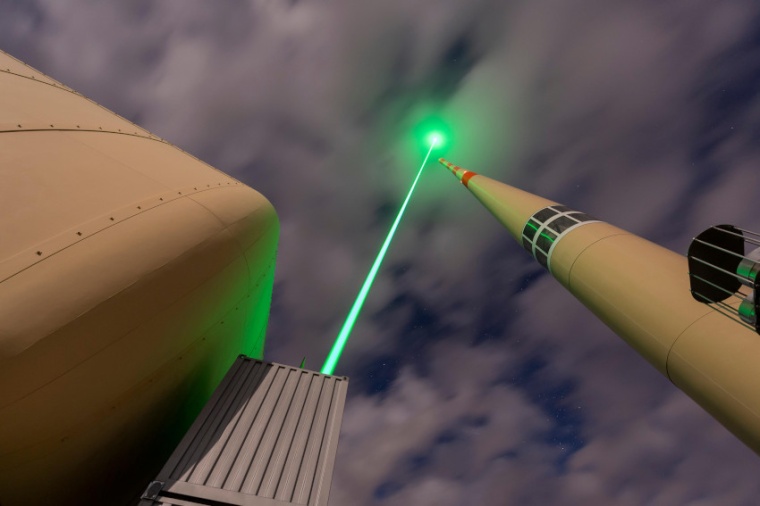

The LLR project meant that a new laser had to be developed with an average power of one kilowatt, one Joule per pulse and a duration per pulse of one picosecond. The rod is 1.5 meter wide, 8 meters long and weighs more than three tons, and was designed by Trumpf scientific lasers. This terawatt laser was tested on the summit of Säntis in Appenzell, at a height of 2,502 meters, already instru­mented to observe lightning. It was focused above a 124 meters transmitter tower belonging to the telecommunications provider Swisscom, which was equipped with a traditional lightning rod. This is one of the structures most affected by lightning in Europe. “The main difficulty was that it was a life-size campaign. We had to prepare an environment in which we could install and protect the laser,” says Pierre Walch, a PhD student in the Labora­toire d’Optique Appliquée, Institut Poly­technique de Paris.

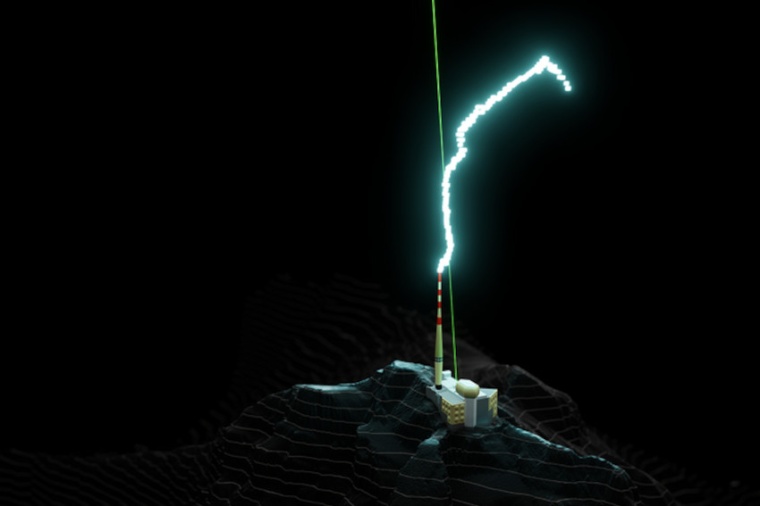

The laser was activated every time storm activity was forecast between June and September 2021. The area had to be closed to air traffic in advance. “The aim was to see whether there was a difference with or without the laser”, explains Aurélien Houard, a research scientist in the Laboratoire d’Optique Appliquée and coor­dinator of the project. “We compared the data collected when the laser filament was produced above the tower and when the tower was struck naturally by lightning.” It took almost a year to analyze the colossal amount of data collected. This analysis now shows that the LLR laser can guide lightning effec­tively. Wolf further explains: “From the first lightning event using the laser, we found that the discharge could follow the beam for nearly 60 meters before reaching the tower, meaning that it increased the radius of the protection surface from 120 to 180 meters”.

The data analysis also demons­trates that the LLR, unlike other lasers, works even in difficult weather condi­tions – such as fog, which can stop the beam – since it literally pierces the clouds. This outcome had previously only been observed in the laboratory. The next step for the consortium will be to increase the height of the laser’s action even further. The long-term objective includes using the LLR to extend a 10 meters lightning rod by 500 meters. (Source: UNIGE)

Further reading: Aim for the sky – A ‘super laser’ to discharge lightning safely, wileyindustrynews.com, 23 July 2021

Reference: A. Houard et al.: Laser-guided lightning. Nat. Photon., online 16 January 2023, DOI: 10.1038/s41566-022-01139-z

Link: The Fet-Open Laser Lightning Rov Project (LLR), Université de Genève, Switzerland
