Diamond mirrors for high-powered lasers

Crystals can withstand the heat from high-powered, continuous beam lasers

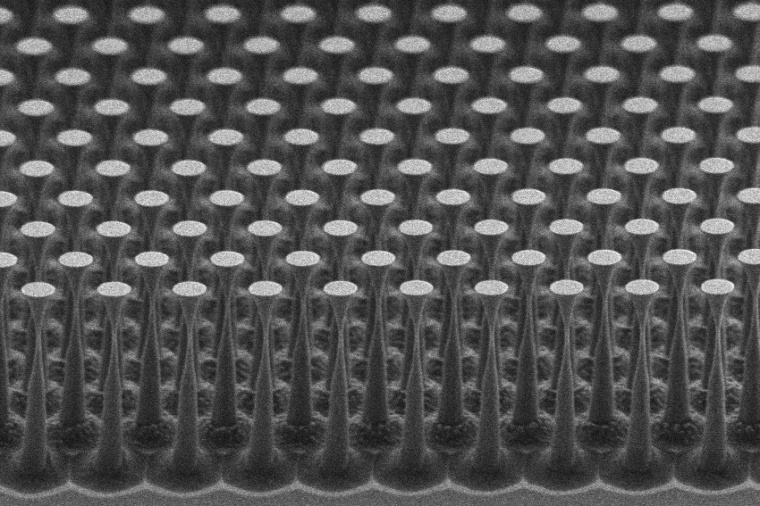

27.05.2022 - Nanostructures onto a thin sheet of diamond withstood, without damage, experiments with a 10-kilowatt laser.

Just about every car, train and plane that’s been built since 1970 has been manu­factured using high-power lasers that shoot a continuous beam of light. These lasers are strong enough to cut steel, precise enough to perform surgery, and powerful enough to carry messages into deep space. They are so powerful, in fact, that it’s difficult to engineer resi­lient and long-lasting components that can control the powerful beams the lasers emit. Today, most mirrors used to direct the beam in high-power continuous wave lasers are made by layering thin coatings of materials with different optical pro­perties. But if there is even one, tiny defect in any of the layers, the powerful laser beam will burn through, causing the whole device to fail.

If you could make a mirror out of a single material, it would signi­ficantly reduce the likelihood of defects and increase the lifespan of the laser. Now, researchers at the Harvard John A. Paulson School of Engi­neering and Applied Sciences SEAS) have built a mirror out of one of the strongest materials on the planet: diamond. By etching nano­structures onto the surface of a thin sheet of diamond, the research team built a highly reflective mirror that withstood, without damage, experiments with a 10-kilowatt Navy laser.

“Our one-material mirror approach eliminates the thermal stress issues that are detri­mental to conven­tional mirrors, formed by multi-material stacks, when they are irradiated with large optical powers,” said Marko Loncar. “This approach has potential to improve or create new appli­cations of high-power lasers.” Loncar’s Labora­tory for Nano­scale Optics originally developed the technique to etch nanoscale structures into diamonds for appli­cations in quantum optics and communi­cations. “We thought, why not use what we developed for quantum appli­cations and use it for something more classical,” said Haig Atikian, a postdoctoral fellow at SEAS.

Using this technique, which uses an ion beam to etch the diamond, the researchers sculpted an array of golf-tee shaped columns on the surface on a 3-mili­meter by 3-milimeter diamond sheet. The shape of the golf tees, wide on top and skinny on the bottom, makes the surface of the diamond 98.9% reflec­tive. “You can make reflectors that are 99.999% reflective but those have 10 to 20 layers, which is fine for low power laser but certainly wouldn’t be able to withstand high powers,” said Neil Sinclair, a research scientist at SEAS.

To test the mirror with a high-power laser, the team turned to colla­borators at the Penn­sylvania State University Applied Research Laboratory, a Department of Defense designated U.S. Navy Univer­sity Affiliated Research Center. There, in a specially designed room that is locked to prevent dangerous levels of laser light from seeping out and blinding or burning those in the adjacent room, the researchers put their mirror in front of a 10-kilowatt laser, strong enough to burn through steel.

“The selling point with this research is that we had a 10-kilowatt laser focused down into a 750-micron spot on a 3-by-3-milli­meter diamond, which is a lot of energy focused down on a very small spot, and we didn’t burn it,” said Atikian. “This is important because as laser systems become more and more power hungry, you need to come up with creative ways to make the optical components more robust.”

In the future, the researchers envision these mirrors being used for defense appli­cations, semi­conductor manu­facturing, industrial manu­facturing, and deep space communi­cations. The approach could also be used in less expensive materials, such as fused silica. Harvard OTD has protected the intellec­tual property associated with this project and is exploring the commerciali­zation oppor­tunities. (Source: Harvard SEAS)

Reference: H. A. Atikian et al.: Diamond mirrors for high-power continuous-wave lasers, Nat. Commun. 13, 2610 (2022); DOI: 10.1038/s41467-022-30335-2

Link: Laboratory for Nanoscale Optics, John A. Paulson School of Engineering and Applied Sciences SEAS, Harvard University, Cambridge, USA
