Heisenberg microscope controls at the quantum level

11.08.2021 - Measuring the collective motion of a glass sphere in a laser trap.

Quantum phenomena are usually very fragile. To study them, one normally uses only a small number of particles, well shielded from the environment, at the lowest possible temperatures. Through a colla­boration between the University of Vienna, the Austrian Academy of Sciences and TU Wien, however, it has now been possible to measure a hot glass sphere consisting of about one billion atoms with unprecedented precision and to control it at the quantum level. Its movement was deli­berately slowed down until it assumed the ground state of lowest possible energy. The measurement method almost reached the limit set by Heisenberg's uncer­tainty principle. This was made possible by applying special methods from control engineering to quantum systems.

The measurement influences the measured object. “Werner Heisenberg came up with a famous thought experiment - the Heisenberg micro­scope”, explains physicist Lorenzo Magrini from the University of Vienna. “If you want to measure the position of an object very precisely under a microscope, you have to use light with the shortest possible wavelength. But short wavelength means higher energy, so the movement of the particle is disturbed more strongly.” You just cannot accu­rately measure the location and the state of motion of a particle at the same time. The product of their unce­rtainties is always limited by Planck's constant – this is the Heisenberg uncer­tainty principle. However, it is possible to find out how close one can get to this limit set by nature.

Markus Aspelmeyer's team is investigating this using a glass sphere with a diameter of less than 200 nanometers, consisting of about one billion particles. The glass sphere can be kept in place with a laser beam. The atoms of the sphere are heated up by the laser, and the internal temperature of the sphere rises to several hundred degrees Celsius. This means that the atoms of the glass sphere are wobbling around violently. In the experiment, however, it was not the wobbling movements of the indi­vidual atoms that were studied, but the collec­tive motion of the sphere in the laser trap. “These are two completely different things, just as the movement of a pendulum in a pendulum clock is something different from the movement of the individual atoms inside the pendulum,” says Markus Aspelmeyer.

The goal was to precisely control the pendulum motion of the glass sphere on a quantum level, even though the glass sphere is actually a macro­scopic object. This can only be achieved using a perfectly designed control system, carefully adjusted to the experiment. This task was taken on by the team of Andreas Kugi at TU Wien. “Control engineering is about influencing systems in such a way that they exhibit a desired behaviour independent of distur­bances and parameter fluc­tuations,” says Andreas Kugi. “This can be a robot arm, for example, a production line in a factory, or even the temperature of a blast furnace.” Applying modern methods of control engineering to quantum systems opens up new possi­bilities. “However, one also has to face challenges that do not exist in classical system theory and control engi­neering,” explains Kugi. “In classical control engi­neering, the measurement has no or negligible influence on the system. In quantum physics, however, this influence cannot be avoided, for very fundamental reasons. We therefore also have to develop novel control engineering methods.”

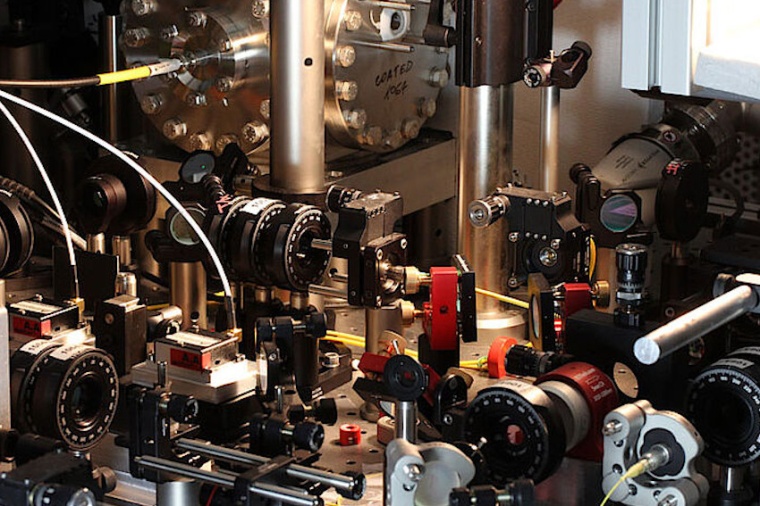

This was a success: the light back­scattered by the glass sphere was detected as thoroughly as possible, using a sophis­ticated microscopy technique. By analyzing the scattered light, the position of the sphere was determined in real time, and then an electric field was conti­nuously adjusted in such a way that it perma­nently counteracted the movement of the glass sphere. In this way, it was possible to slow down the entire sphere and put it into a state of motion that corres­ponds to the quantum-physical ground state, i.e. the state of the smallest possible kinetic energy – despite the fact that it is a relatively large object at high tempera­tures, whose atoms wobble vigorously.

“You always have to consider spatial and kinetic uncertainty together. Overall, the quantum uncertainty of the glass sphere was only 1.7 times Planck's quantum of action,” says Lorenzo Magrini. Planck's constant would be the absolute theoretical lower limit, never before has an experiment come that close to the absolute quantum limit using an object of this size. The kinetic energy measured in the experiment corresponded to a tempera­ture of just 5 micro-Kelvin. The movement of the glass sphere as a whole can therefore be assigned an extremely low temperature even if the atoms that make up the sphere are very hot.

This success shows the great potential of this new combination of quantum physics and control engineering: both research groups want to continue working in this direction and exploit know-how from control engi­neering to enable even better and more precisely controlled quantum experiments. There are many possible appli­cations for this, ranging from quantum sensors to techno­logies from the field of quantum infor­mation. (Source: Vienna U.)

Reference: L. Magrini et al.: Real-time optimal quantum control of mechanical motion at room temperature, Nature 595, 373 (2021); DOI: 10.1038/s41586-021-03602-3

Link: Quantum Optics, Quantum Nanophysics and Quantum Information, Vienna Center for Quantum Science and Technology (VCQ), University of Vienna, Vienna, Austria
