Tiny endo-microscope for deep-brain observations

08.09.2023 - New device could help to understand neuronal communication better.

In order to investigate the activity of neuronal structures as well as the interaction of nerve cells, minimally invasive techno­logies providing images from delicate deep-brain tissues are required. A new hair-thin endo-microscope, developed by an international team with the partici­pation of Leibniz Institute of Photonic Technology (Leibniz IPHT) in Jena, Germany, promises extremely gentle in-depth obser­vations. It offers the potential to investigate areas of the brain in great detail and to study the onset and progression of severe neuronal diseases. The instrument is expected to help neuro­scientists in defining new strategies how to combat these debilitating conditions.

Neuronal diseases such as autism, epilepsy, Alzheimer’s, or Parkinson’s disease are still poorly understood. Therefore, preventing, treating, or alleviating these illnesses remains a major challenge. In order to better understand the causes and the origins of these diseases, and to develop and monitor tailored therapies, it is important to decipher and study how the affected nerve cells, which are frequently located in very deep structures of the brain, behave within the natural complexity of the whole organism. Neuro­scientists investigate these conditions in small animal models and exploit minimally invasive endoscopy techniques to study deep-brain structures.

With a diameter of only 110 micrometers, the developed endoscope is enabling the acquisition of images at an unprece­dented tissue depth and at the sub­cellular level. This not only allows research into deep-residing brain structures, which were previously difficult to access, but also to precisely study the neuronal connectivity and signaling activity of individual neurons in the brain. “At the heart of the endoscopic system is an ultra-thin optical glass fiber that serves as a probe. Using digital holography, we can use it to image and visualize individual cells and blood vessels with high-reso­lution, distortion-free and with high-contrast. The hair-thin endoscopy design enables extremely atraumatic in-vivo examination without damaging sur­rounding tissues,” explains Tomáš Čižmár, head of the Fiber Research and Technology Research Department at Leibniz IPHT.

Conventional endoscopic solutions used in in-vivo neuro­science research usually use specialized rod lenses (GRIN), which convey images from one of its ends to the other. Due to their footprint, they may pose a great risk of tissue damage and severely affect the validity of neuro­science studies. The newly developed holographic endoscope overcomes this dis­advantage by using a single multimode optical fiber as the imaging probe, making it the least invasive method for visuali­zing sensitive brain areas.

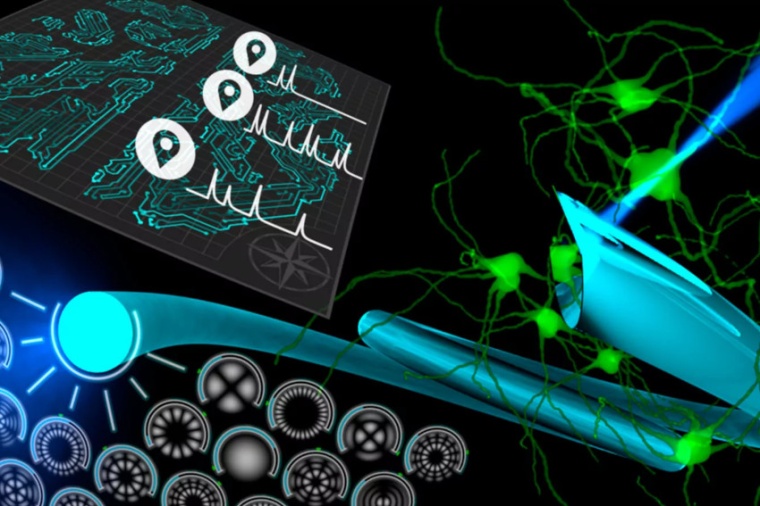

The researchers have also exploited a new type of fiber probe, a side-view probe, which allows observation of the tissue perpen­dicular to the fiber axis. In this way, the tissue being imaged is much less stressed and damaged by the insertion of the endoscope into the tissue than by using conventional bare-terminated probes. As the probe offers the potential to penetrate deeper into the tissue, the side-view probe also offers the possibility to stitch together individual frames taken along the way into a panorama-like image, allowing a continuous view of the entire depth of the brain.

In addition to the direct observation of structural connectivity between neurons, particularly the dendritic spines, intra­cellular processes can also be observed with the developed endoscopic solutions. Dynamics of subcellular structures, changes in intra-cellular calcium concen­tration, and the speed of the blood flow in individual vessels could be studied. All these properties could provide neuro­scientists with indications to patho­logical changes in the brain.

„In neuronal diseases, the cognitive and motor performance of the affected organism may be irreversibly limited by changes or loss of nerve cells. We are developing techno­logies to monitor signs of a disease, for example, through altered neuronal communi­cation, at an early stage. With these new and powerful light-based instruments, we can help to provide unprece­dented insights into the control center of vital functions with high image quality and thus expand the under­standing of neuronal diseases,“ says Čižmár. (Source: Leibniz-IPHT)

Reference: M. Stiburek et al.: 110 μm thin endo-microscope for deep-brain in vivo observations of neuronal connectivity, activity and blood flow dynamics, Nat. Commun. 14, 1897 (2023); DOI: 10.1038/s41467-023-36889-z

Link: Fiber Research and Technology, Leibniz Institute of Photonic Technology, Jena, Germany
