Compact electro-optic modulators for free space

New photonic devices may have applications in lidar, optical computing

22.06.2022 - A tunable electro-optic modulator for free space applications can modulate light at gigahertz speed.

Electro-optic modulators, which control aspects of light in response to electrical signals, are essential for everything from sensing to metrology and telecommuni­cations. Today, most research into these modulators is focused on applications that take place on chips or within fiber optic systems. But what about optical applications outside the wire and off the chip, like distance sensing in vehicles? Current techno­logies to modulate light in free space are bulky, slow, static, or inefficient. Now, researchers at the Harvard John A. Paulson School of Engineering and Applied Sciences (SEAS), in colla­boration with researchers at the department of Chemistry at the University of Washington, have developed a compact and tunable electro-optic modulator for free space appli­cations that can modulate light at gigahertz speed.

“Our work is the first step toward a class of free-space electro-optic modulators that provide compact and efficient intensity modu­lation at gigahertz speed of free-space beams at telecom wavelengths,” said Federico Capasso, Robert L. Wallace Professor of Applied Physics and Vinton Hayes Senior Research Fellow in Electrical Engineering. Flat, compact meta­surfaces are ideal platforms for controlling light in free space but most are static, meaning they can’t switch on and off – a key func­tionality for modulators. Some active metasurfaces can effec­tively modulate light, but only at low speeds, just a few megahertz. For appli­cations such as sensing or free-space communi­cations, you need short, fast bursts of light, on the scale of gigahertz.

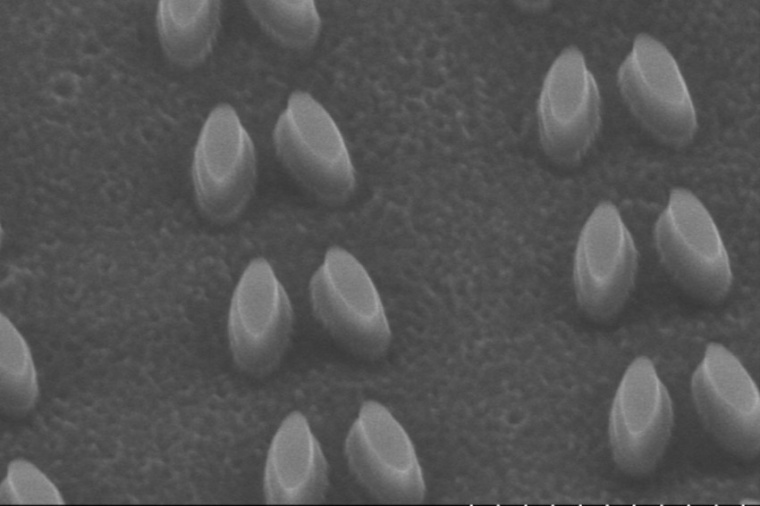

The high-speed modulator developed by Capasso and his team brings together meta­surface resonators with high-performance organic electro-optical materials and high-frequency electronic design to effi­ciently modulate the intensity of light in free space. The modulator consists of a thin layer of an organic electro-optic material deposited on top of a meta­surface etched with sub-wavelength resonators inte­grated with microwave electronics. When a microwave field is applied to the electro-optical material, its refractive index changes, changing the intensity of light that is being trans­mitted by the metasurface in mere nanoseconds.

“With this design, we now can modulate light 100 to 1,000 times faster than previously,” said Ileana-Cristina Benea-Chelmus, a research associate in the Capasso Lab. “This speed advance opens new possi­bilities in computing or communi­cations and the tunability of the metasurface opens up a vast application space for custom-tailored, ultra­compact photonics that may in the future be deposited onto any nanoscale free-space optical product.” Next, the researchers aim to see if they can modulate light even faster and, by changing the design of the metasurface, modulate other aspects of light such as phase or polari­zation. (Source: Harvard SEAS)

Reference: I.-C. Benea-Chelmus et al.: Gigahertz free-space electro-optic modulators based on Mie resonances, Nat. Commun. 13, 3170 (2022); DOI: 10.1038/s41467-022-30451-z

Link: Capasso Group, Harvard John A. Paulson School of Engineering and Applied Sciences, Harvard University, Cambridge, USA
